Cranked Riser “M” (47,5-87cm / 18,7″-34,25″)

SKU: 2140-0

Cranked Riser M for easy camera position correction.


Add to Quote


Cranked Riser M: Precision Camera Positioning Made Effortless

Meet the Cranked Riser M.

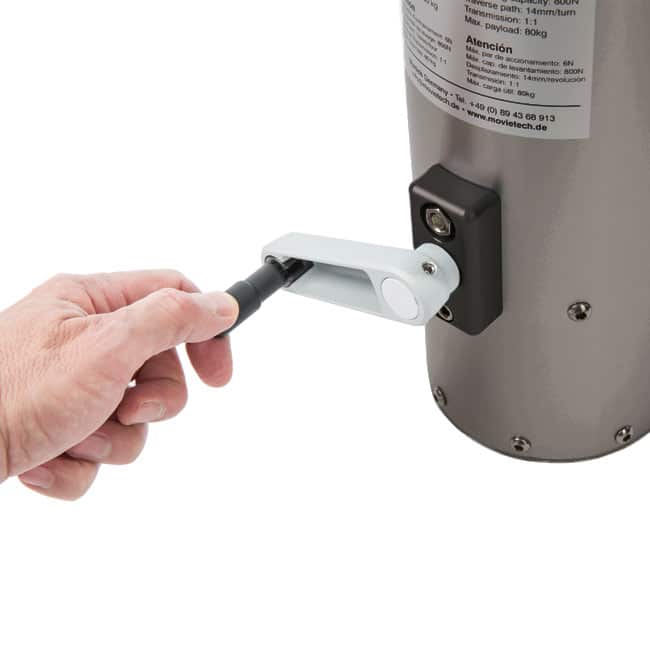

With an ultra-easy hand crank, this riser allows for fast corrections of the camera height.

Once in position, an internal screw and hand lever mechanism ensures a rock-solid and safe lock-off.

Adjustable from 47.5cm to 87cm, it offers flexibility tailored to your shooting needs.


Key Features:

  1. Effortless Position Correction: The hand crank enables fast and easy camera position adjustments, ensuring efficiency on set.
  2. Locking mechanism: Achieve a solid lock-off with a full range of motion, providing stability for your camera setup.

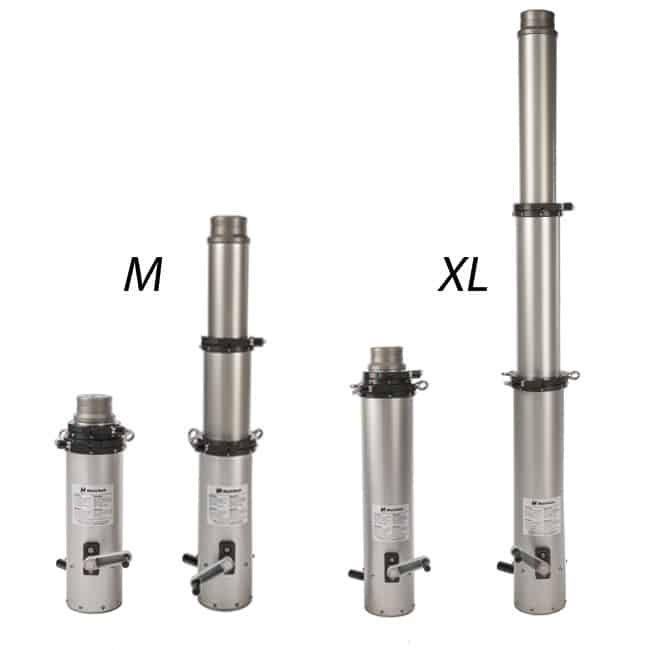

  3. Adjustable Height: Easily adapt the height from 47.5cm to 87cm, offering flexibility to suit various shooting scenarios.
  4. Self-Locking Drive: With a maximum payload of 80kg, the self-locking drive prevents segments from sinking under load, ensuring stability during operation.
  5. Euro Mount Compatibility: The bazooka is seamlessly picked up via an 80mm Euro mount, ensuring compatibility with standard equipment.
  6. Stabilization Option: In the extended state, the crank column can be stabilized using tension straps. Eyebolts for attaching the straps are included in the scope of delivery.

Additional information

height retracted

47,5cm / 18,7"

height extracted

87 cm / 34,25"


80 kg / 176 lbs


8,5 kg / 18,7 lbs
