Meet the New 2024 Version!

Magnum Dolly #V

Tech Specs and Downloads • Magnum Dolly Video • Magnum Dolly Features

0 kg

0 m

0 °

0 sec

Product Highlights

The MAGNUM DOLLY is the flagship of MovieTech‘s camera support equipment. This electromechanical center column camera Dolly is well-known and valued for its quality and reliability – worldwide.

The latest version is the MAGNUM DOLLY #V, abundant in new features:

Wireless handcontrol unit
Smoother column movement
Multifunctional turnstyle
Intuitive GUI, Software with customizable modes
New surface treatment

To ensure highest quality and reliability, as well as safety and user-friendliness, we manufacture our MovieTech grip equipment in-house in our factory in Munich – MADE IN GERMANY !

You are currently viewing a placeholder content from Youtube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Play Video about 2023_New_Magnum_Dolly_Bastian_Ried

Main Features Magnum Dolly

Wireless Remote Control

Remote hand control for precise navigation of the dolly, from up to 20m distance to the MAGNUM DOLLY.

More information

Removable Column

Removable and rotatable centre column for convenient transportation of the MAGNUM DOLLY.

More information

Mutlifunctional Turnstile

A redesigned turnstile for more stability, higher flexibility, a strong break, and more range of motion.

More information

Ergonomic Seating

Easily adjustable height of the seat and distance to the center of rotation of the MAGNUM DOLLY for more ergonomic seating.

More information

Leading Driving Stability

Advanced driving stability for smooth, best-in-class camera movement.

More information

Multiple Wheel Settings

Three different steering modes (fixed, crab, free) and four different wheel types (pneumatic, studio, soft studio, wide).

More information

Smart Electronic

Different modes for ideal MAGNUM DOLLY operations including replay a previously recorded move and drive to target positions.

More information

Telescopic Steering

Height-adjustable handlebar to allow ergonomic operations of every gripper combined with backlash-free connection.

More information

Our Magnum Dolly Variations

To offer you more flexibility, we designed the MAGNUM DOLLY as a modular camera dolly system. The foundation is the LEGGERO BASE DOLLY. Standardized it comes with our electromechanical CENTRE COLUMN which offers you maximal flexibility in your shots. For fixed shots, you can alternatively use the lightweight BASE PLATE EURO ADAPTER or the BASE PLATE EURO TURNSTILE MOUNT.

Highlights of the new Magnum dolly #V

Wireless Remote Control:

Ergonomic design with soft-touch surface
Intuitive und user-friendly GUI (graphical user interface)
Tough-through Metal buttons – can be operated with gloves or when wet
2,4 GHz Wireless Transmission
Wireless reach 200m open field / 20m indoor
Charging via Dolly-cable or external HCU charging-unit
Integrated LiFePo Battery > 1 week on a single charge
LCD screen with (automatically) adjustable brightness

New Motor control Electronic Unit:

Improved driving stability – close to zero vibrations of the dolly column when driving
Drop-button for direct dolly operation
Second LCD Screen on the dolly for redundant operation
Reliable components, new motor unit etc.
Software-Updated via USB port
Mobile phone charging via USB port
Emergency stop button

Software Features:

Standard Mode: for quick and easy dolly operation on a daily basis
Rec&Play Mode: exactly Replays a previously recorded Dolly move
Target Mode: Set target positions and drive to them
5 step ramp selector for soft-start/stop of the column
20 step speed selector for precise speed settings
Safety features such as Jib Mode or Ring-Platform mode
Real time battery status indication
Constant self-check of electronic metrics with detailed logbook

Wheel Setting

The Wheel Setting Clamp has 3 settings:
CRAB -> Enables connected steering of the wheels.
FREE -> Enables the wheels to rotate freely (for use on track).
FIXED -> Allows the wheels to be locked at set angles of 45 degrees.

New Turnstyle

Probably one of the most striking innovations of the New MAGNUM DOLLIES is the completely redesigned turnstile. It offers an incredible variety of advantages over the previous model and also over turnstiles of other dollies

New Telescopic Steering

The new telescopic handlebar can be optimally adjusted to the individual body size of the respective dolly grip. This enables much more ergonomic working.

In addition, the connection to the dolly is now absolutely backlash-free. This enables even more precise operation of the dolly.

The telescopic handlebar (1013-00) is included in the standard Magnum Dolly set, but can also be retrofitted on request.

Ergonomic Seat Arm Concept

The new MAGNUM-DOLLY turnstile features ultra-stable seat arm adjustment.

This allows the seat position to be optimally adjusted to the respective requirements.

The Magnum Dolly in Detail

Wireless Remote Control

The new wireless remote control allows you to steer the dolly from distance. It is designed for precision work giving you more flexibility than ever before. If preferred the dolly can be controlled as usual as well.

Ergonomic design with soft-touch surface
Intuitive und user-friendly GUI (graphical user interface)
Tough-through metal buttons – can be operated with gloves or when wet
2,4 GHz Wireless Transmission
Wireless reach 200m open field / 20m indoor
Charging via Dolly-cable or external HCU charging-unit
Integrated LiFePo Battery > 1 week on a single charge
LCD screen with (automatically) adjustable brightness

Centre Column

The removable electromechanical MAGNUM DOLLY centre column is the heart of the dolly movement. Effortlessly mountable within seconds, this column is engineered for outstanding shots.

Integrated, high-precision ball bearing for awhisper-quiet
360° panning rotation
Payload of 250kg/550lbs
Lift range of 165cm/5`5″.

New Turnstile

The MAGNUM DOLLY #V comes with a completely redesigned turnstile offering incredible variety.

Multifunctional – attach a wide variety of accessories such as the system low boom mount, the assistant’s seat mount, the 4-way-leveler, etc to different positions.
Lower – easily remove the EURO SPIGOT and mount accessories directly on the columnfor even lower shots.
Stabile and rigid – high-strength alloys made the new turnstile significantly more stable. The material has increased visibility to minimize deflection, even under maximum load.
New Brake – a solid stainless steel sprocket locks the turnstile in position.
Versatile – More possibilities than ever to work with your MAGNUM DOLLY. For example, the ultra-stable seat arm extension can be used as a mini low rig if time does not permit a complete setup.

Ergonomic Seating

The new MAGNUM DOLLY turnstile features ultra-stable seat arm adjustment. It allows the seat position to be optimally adjusted to the respective requirements.

Adjust the height of the seat and the distance to the center of rotation of the Dolly for more ergonomic seat positions.

Driving Stability

MAGNUM DOLLY is known for its excellent driving stability and it got even better with the newest model.

Close to zero vibrations of the dolly column when driving
High-quality components
Main unit of MAGNUM DOLLY base manufactured from a single piece of high quality aluminium
New motor unit for increased speed and power
Drop-button for direct dolly operation
Second LCD Screen and rocker switch on the dolly as back-up option
Software-Updates via USB port
Mobile phone charging via USB port
Emergency stop button

Multiple Wheel Settings

Choose from three different wheel settings and four different wheel types.
Wheel settings:

CRAB – enables connected steering of the wheels
FREE – Enables the wheels to rotate freely (for use on track)
FIXED – Allows the wheels to be locked at set angles of 45 degrees

Wheel types:

Soft studio wheels – super soft for smooth shots
Studio wheels – smooth studio shots, even w/o track
Wide wheels – better load distribution and increased stability
Pneumatic wheels – robust and perfect for transport

Smart Electronics

The MAGNUM DOLLY #V comes with an updated electronics system for your best shots.

Standard Mode: for quick and easy dolly operation on a daily basis
Rec&Play Mode: exactly Replays a previously recorded Dolly move
Target Mode: Set target positions and drive to them
5 step ramp selector for soft-start/stop of the column
20 step speed selector for precise speed settings
Safety features such as Jib Mode or Ring-Platform mode
Real time battery status indication
Constant self-check of electronic metrics with detailed logbook

Telescopic Steering

The new telescopic handlebar can be optimally adjusted to the individual body size for ergonomic working. In addition, the connection to the dolly is now absolutely backlash-free. This enables even more precise operation of the dolly.

The steering rod can be positioned on all four wheel arms.

Changing the steering mode: The shifters on all four arms of the dolly allow to choose between the steering modes Fixed, Crab and Free.
Narrow Gauge: The track width is 36cm for “Narrow Gauge”. While the dolly is moved in that condition, the steering mode must be put on “Free
Standard Gauge: The dolly has a track width of 62cm which is the standard dimension for tracks

The telescopic handlebar (1013-00) is included in the standard Magnum Dolly set, but can also be retrofitted on request.

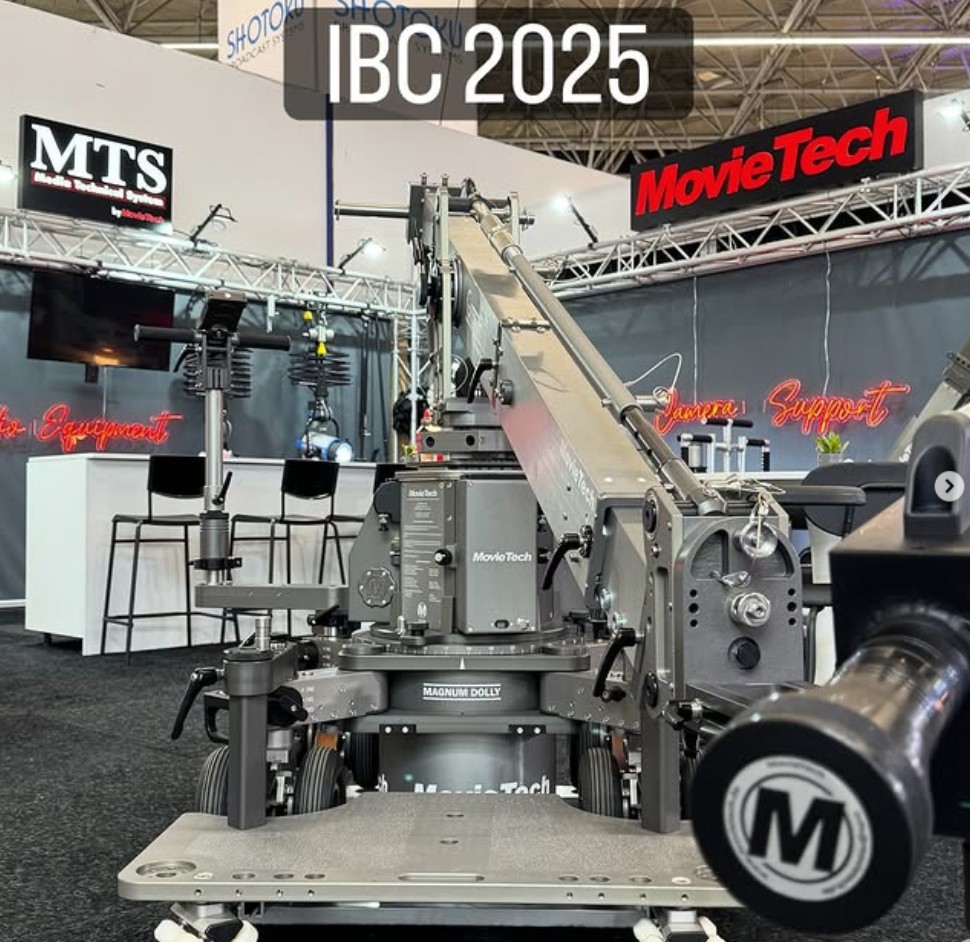

The IDEAL COMPANION

The GIZMO JIB is the perfect partner for the Magnum Dolly System.

With its telescopic front segment, the Gizmo Jib offers you all the versatility, allowing you to adjust its length effortlessly from towering heights to ground level, ensuring you capture every angle.

Designed with seamless integration in mind, the connection rod effortlessly links the Magnum column to the jib, enabling synchronized movement. This means you can effortlessly control the jib’s articulation using the Hand Control Unit of the dolly, granting you unparalleled ease and finesse in your cinematographic endeavors.

Magnum Dolly accesSories

Magnum Dolly System is a very customizable tool-kit. The classic set-up plus accessories transform the Magnum Dolly into the ideal tool for any shot requirement: from Low Rig Set to Kirin Duo-Jib for Magnum you can get your camera to film at any angle, level and perspective. The list of accessories is long:
