Description

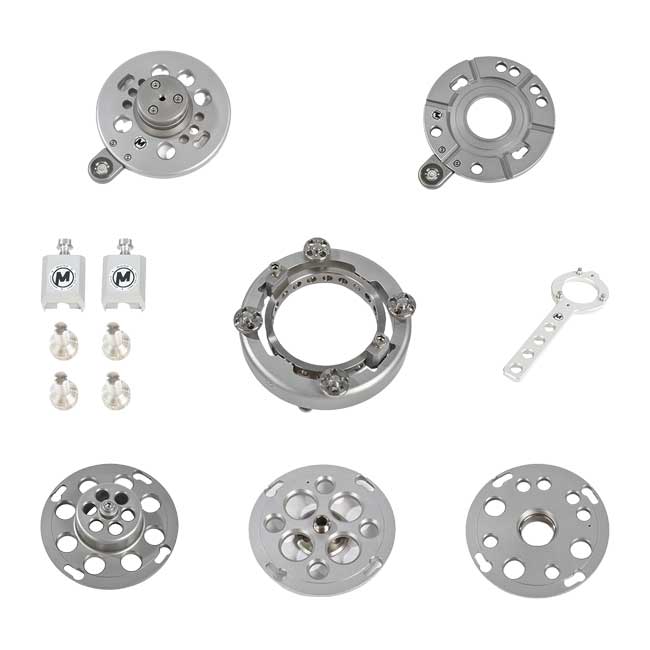

4 Way Leveller Complete Set

Technical specifications

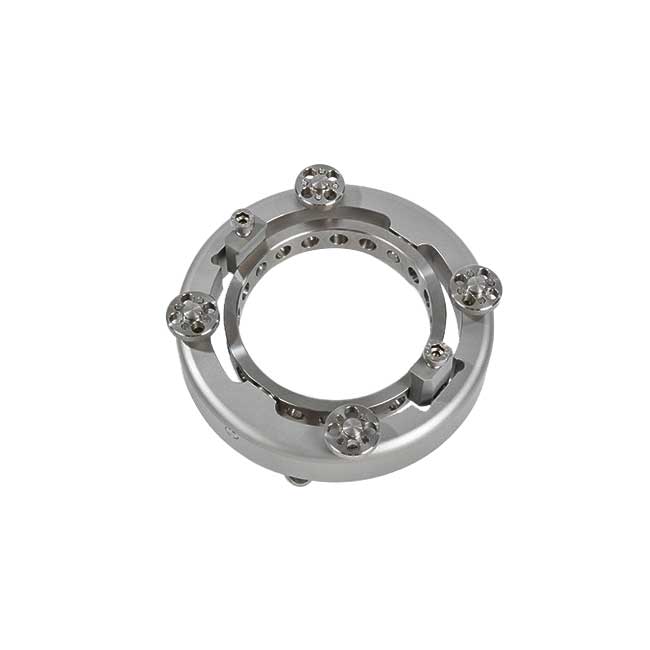

• 2250-1000 universal joint
• 2250-1300 Retrofit Kit for Mitchell and euro mount

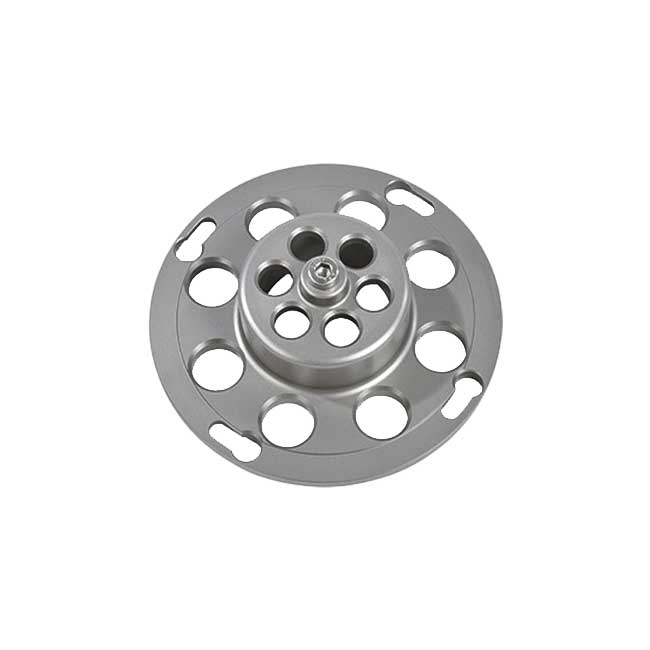

• 2250-2100 Lower section euro mount

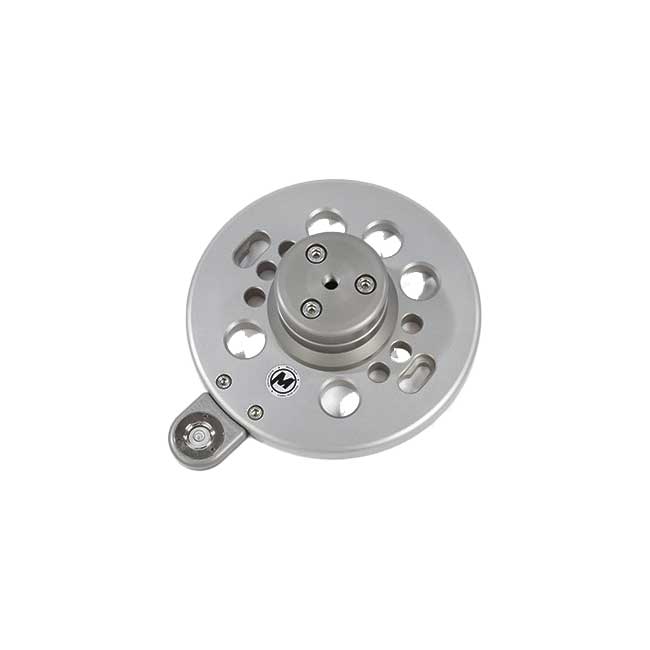

• 2250-2200 Euro mount top
• 2250-3300 Lower Mitchell M24

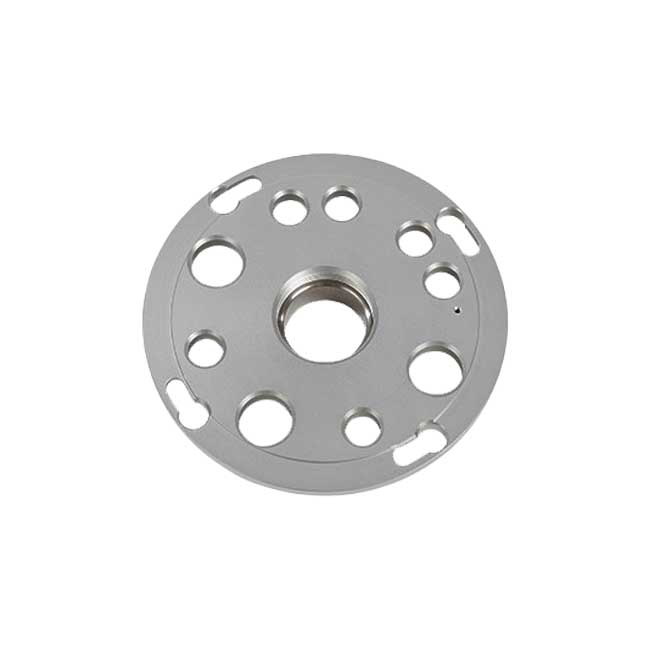

• 2250-3600 Mitchell lower section with cable gland

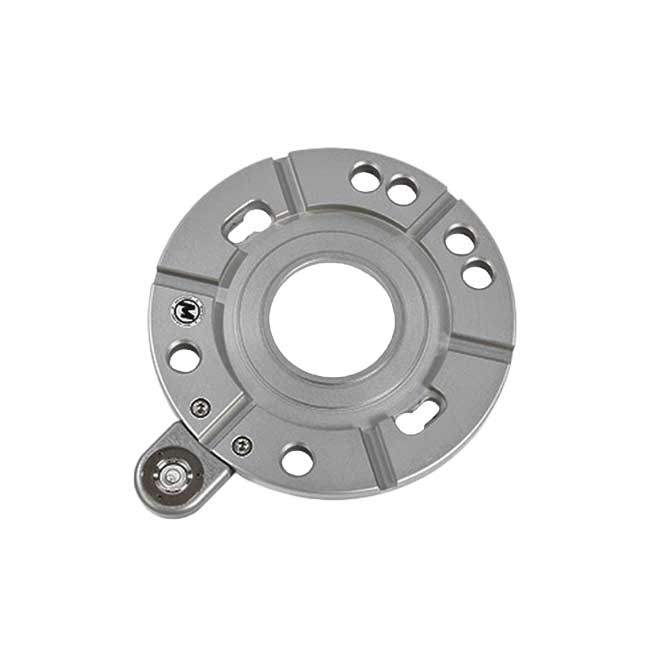

• 2250-3500 Mitchell Top

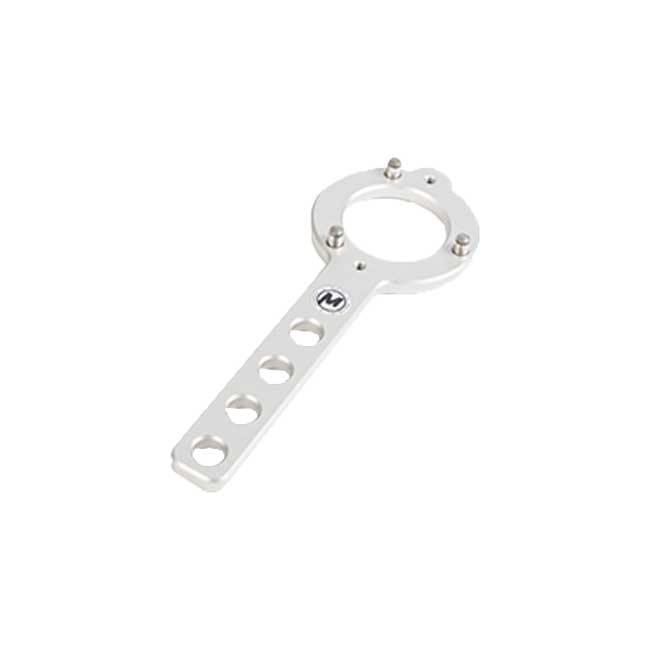

• W1000 hex wrench 8×150
• M3398 Case Four-way Leveling
  • 5 replacement plates are available as accessories
  • 7 ° Inclination angle (above average)
  • 5900gr (lightweight construction aluminum)
  • Fine thread (leveling by hand at high load possible)
  • Overhead work possible (new suspension)cylinder head bolts Art.Nr. 2250-100SET

With this flexible system, there are no surprises on the set!

Optional connection plates can be exchanged via bayonet system!
The base is a gimbal which can be equipped with various top and bottom plates (Euro and Mitchellmount)!
And this in a few seconds, via practical bayonet closures.
The new 4-way levellers are play-free and are very robust – ideal for the tough requirements on the set.
A single SET like Euro on Euromount can be supplemented with optional adapter plates at any time.

The new 4-way Mitchell leveling unit fine threads allow very precise positioning of the tilt angle. 5900 gram lightweight 4-way levellers are mainly made of aluminum, the axles are free of weights. The 4-way levellers can be supplemented with all adapter plates of the set.
