Mini Jib

The MovieTech Mini Jib arm’s use is very versatile. Heavy cameras can be operated very stable and sensitive. The weight balancing is accomplished via a crank fast and continuous. The length of the front arm is 83 cm/ 33 inch (from the column forward).
The Jib arm is equipped with a horizontal and vertical handbrake. The horizontal pan radius is 360°. Optional attachments and adapters allow further height, depth and side positions.

Product Highlights

Technical data

Accessories



Item No. 2100-0 consists of:

  • Crane support with integrated brake
  • Aluminum main segment
  • Telescopic end segment
  • Parallelogram rod with integrated vertical brake
  • Euro mount at the jib end (may be installed on top or bottom)
  • Counterweight rod (Item No. 2120-90)
  • 2 main handle bars for steering

The highlights at a glance:
movietech-minijib-kurbelsystem

Levelling of the counterweights by a crank:

The Minijib is levelled by a telescopic crank. A brake mechanism guarantees the necessary security.

movietech-minijib-euromount-aufnahme

Fitting on Dolly an Tripod:

The Jib’s Euromount allows a flexible fitting to any Eurocoupling.  The fitting on a tripod is possible with a special adapter from bowl to Euromount.

movietech-minijib-vertikale-bremse

Vertical brake:

The vertical brake enables a reliable retarding even with high payloads.

movietech-minijib-tiefausleger

Accessories:

Via optional accessory parts and adapter further high, down and side positions may be reached

Technical data:

movietech tabelle abmessungen

Technical drawing:

movietech-moviejib-skizze

MovieTech Movie Jib

movietech-minijib-mit-stange

 DOWNLOAD  Operating instruction, service booklet and coding data

Accessories:

Adapter

MovieTech-accessories-Low-Rig-Adapter-MiniJib

Item No. 2117-0 System Low Rig adapter for MiniJib

movietech-minijib-low-rig-adapter

Item No. 2103-0 Low Rig Adapter for MiniJib

MovieTech-accessories-off-set-rig-minijib

Item No. 2101-0 Off-Set rig for MiniJib

movietech-grip-accessories-mini-low-rig

Item No. 2104-0 Mini low rig

movietech-adapter-mini-tiefausleger-s

Item No. 2105-0 Adapter Mini Low rig “S”

movietech-adapter-mini-tiefausleger-m

Item No. 2116-0 Adapter Mini Low rig “M”

movietech-adapter-mini-tiefausleger-L

Item No. 2115-0 Adapter Mini Low rig “L”

MovieTech-accessorie-adapter-mount-euro-minijib

Item No. 2102-0 Euro adapter mount for MiniJib

movietech-minijib-verbindungsstange

Item No. 2106-0 MiniJib connector rod to Magnum column

movietech-kugelschale-150mm-2031-0

Item No. 2031-0 Ball adapter 150mm

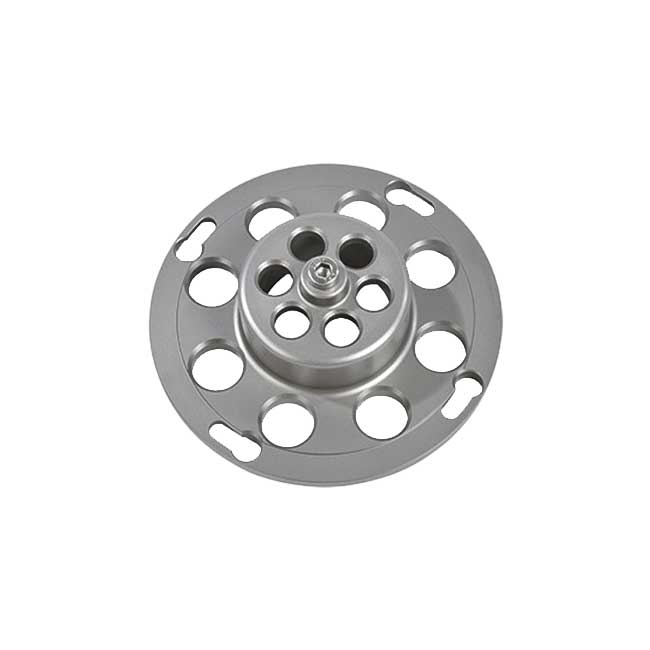

movietech-mitchell-adapter-2041-10

Item No. 2041-10 Mitchell Base plate

Dolly and tripod base

movietech-bullstand-moviejib

Item No. 8321-03 Tripod Bullstand

movietech-dolly-cd6

Item No. 7530-0SET Wide Base Dolly CD6 with pneumatic wheels incl. column and column adapter for MiniJib
Item No. 7530-01SET Wide Base Dolly CD6 with Studio wheels incl. column and column adapter for MiniJib

movietech-nivellierstützen-dolly-cd67531

Item No. 7531-0SET Levelling legs for Dolly CD6

movietech-schienenräder-cd6-7532

Item No. 7532-0SET Track wheel set for Dolly CD6

Counterweights

movietech-gegengewicht-5kg

Item No. 2112 Counterweight 5kg

movietech-gegengewicht-10kg

Item No. 2111 Counterweight 10kg

movietech-gegengewicht-16kg

Item No. 2110 Counterweight 16kg

Case for MiniJib

movietech-grip-accessories-case-mini-jib

Item No. 2169 Case for MiniJib
